ASAT pro for Mercedes · AIRMATIC · ABC · E-ACTIVE BODY CONTROL

The ride height angle, right the first time.

A dedicated measuring instrument for Mercedes level calibration. Hold it under the arm, read the angle, type it into your diagnostic tool. No app, no subscription.

Buy ASAT pro ASAT pro Alu
ACCURACY ±0.1° or better HOLD twist corrected SCREEN 1200 nits

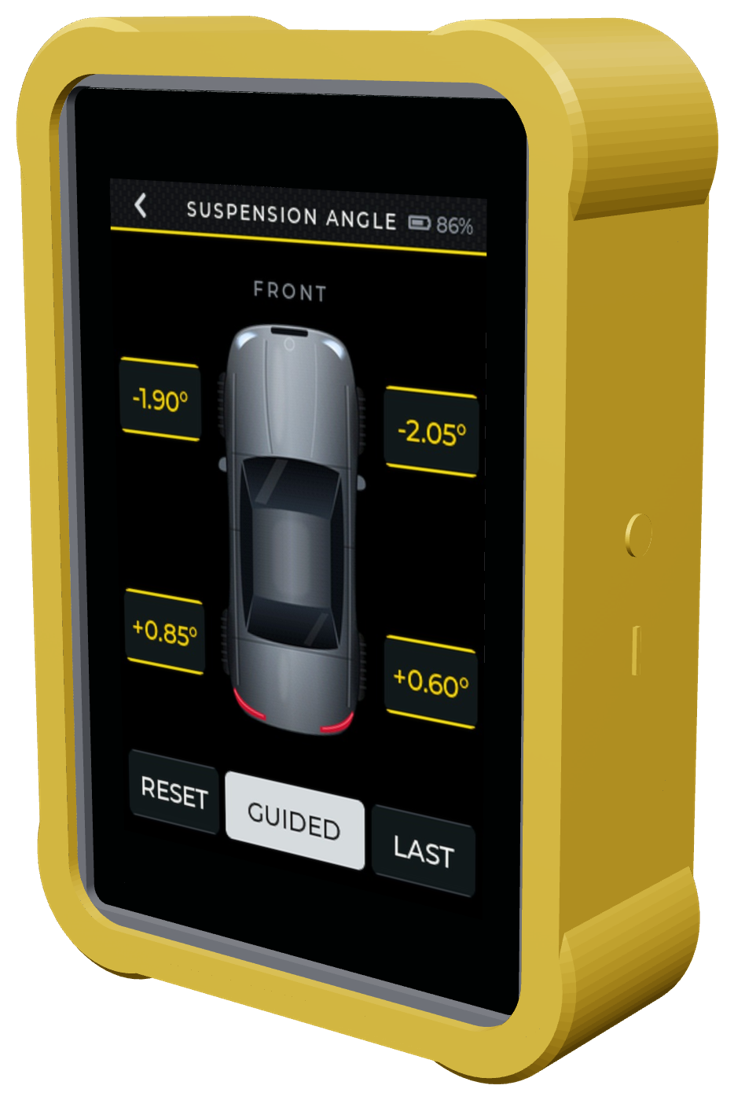

ASAT pro, black tool with gold bumper, showing the car view with all four corner angles
The problem

One wrong angle and the car leaves crooked

After a strut, level sensor or valve block repair, the car must be calibrated, and the scanner asks for an angle at each corner.

The shortcuts

  • 01
    Phone apps. A phone's tilt sensor is a low-cost part made for turning the screen, not for precision measuring. On a round arm the phone rocks too, so no two readings agree.
  • 02
    Copied values. Guessing the angles, or taking them from another car, ignores this car's own parts and wear.
  • 03
    Bubble levels and tape measures. Too rough for a value the car needs to a fraction of a degree.
  • 04
    Hidden twist. Hold an ordinary level a little twisted on the shaft and it reads wrong, without telling you.

What a wrong calibration can cause

  • !
    A car that sits crooked or too high or low, side to side or front to rear.
  • !
    Wheel alignment out of spec, because camber and toe change with ride height. Uneven tyre wear follows.
  • !
    Safety risks. Less stable braking and cornering, headlights aimed too high or too low, and driver-assistance sensors that expect the correct ride height.
  • !
    Poorer ride and handling, with less suspension travel at one corner.
  • !
    Comebacks. The customer returns and you do the job again for free.
How it works

Three steps, four corners

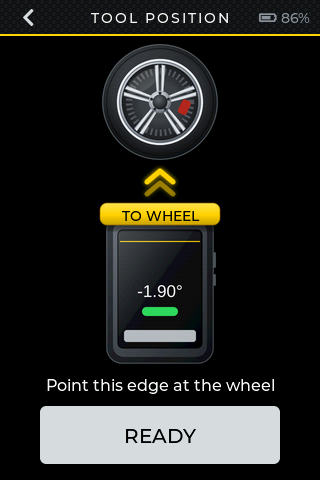

  1. Tool position screen: point this edge at the wheel
    STEP 1

    Hold it under the arm

    The 4-point base sits steady on round arms and half shafts, base up, with the screen facing down toward you.

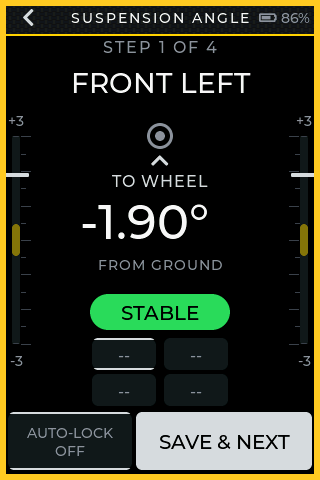

  2. Guided measuring screen, step 1 of 4, front left
    STEP 2

    Follow the corners

    Guided mode takes you through front left, front right, rear left and rear right. The TO WHEEL arrow keeps the tool facing the same way, and it tells you when the reading is stable.

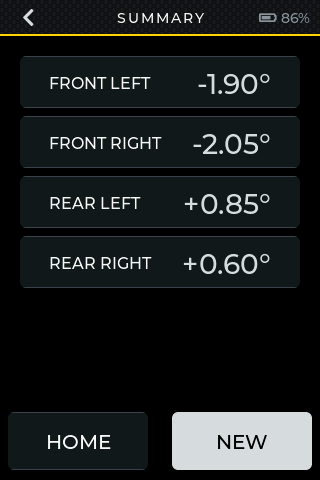

  3. Summary screen with all four corner angles
    STEP 3

    Type in the numbers

    The summary shows all four values with clear plus and minus signs. Enter them in whatever diagnostic tool you use.

Twist correction

Hold it twisted. The angle stays true.

On a round shaft the tool rarely sits perfectly upright. With a simple level, any twist on the shaft changes the reading. ASAT pro measures both axes at once and calculates the true angle along the arm, however it's turned.

  • No need to balance the tool level on a round arm
  • The same number every time, from any hold
  • Less time under the car, fewer re-measures
SHAFT, END VIEW TWIST ANGLE ALONG THE ARM: STILL TRUE
Why workshops choose it

Built for under the car

±0.1°

Accurate

Or better, the same class as tools costing up to ten times more. Every unit is checked against a reference before it ships.

4 pts

Made for the job

A 4-point base shaped for Mercedes arms and shafts, 18 mm across or thicker.

1200 nt

Readable anywhere

A bright bonded screen, with touch that works with gloves and when wet.

2 LED

Flashlight

Two white LEDs on the back light up the measuring point.

8

Languages

English, Hebrew, French, Italian, Spanish, Arabic, German and Russian.

USB-C

Standalone

No app and no subscription. Charges from any USB-C charger. Wi-Fi and Bluetooth stay off.

Two versions

Same accuracy, your choice of base

Both have the same accuracy and screen. The Alu version adds a rugged machined metal base for daily workshop use, and it's the only version ready for future add-ons.

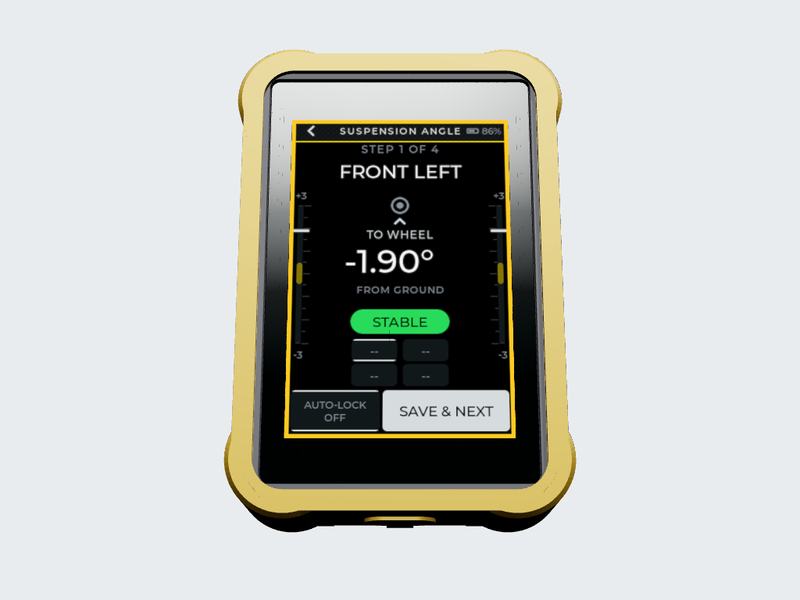

ASAT pro, black tool with gold bumper, turning all the way round
Standard

ASAT pro for Mercedes

$1,099See what's in the box
  • High-strength carbon-fibre-filled base
  • Protective TPU bumper included, gold or silver
  • Bright 3.5" screen, 1200 nits
  • Built-in LED flashlight
  • Suspension, driveshaft and level measuring
  • 12-month warranty

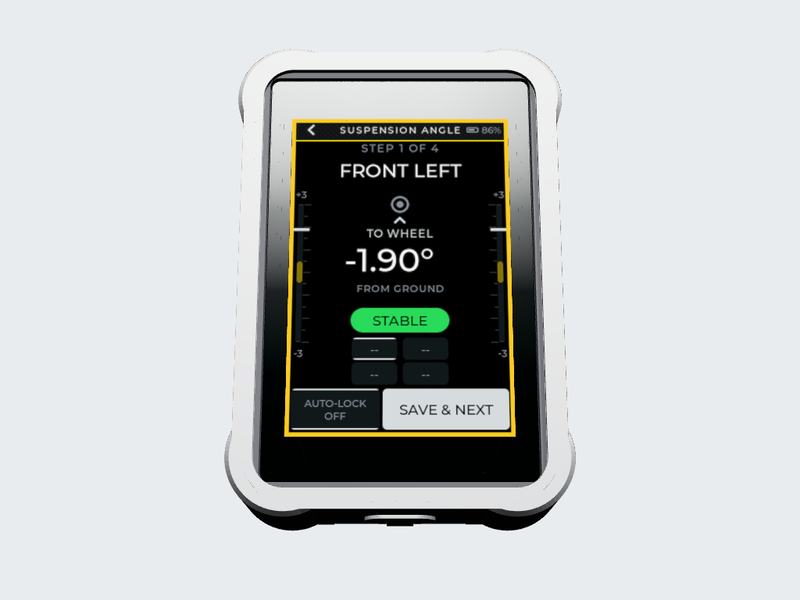

ASAT pro Alu, complete tool with silver bumper and laser-marked aluminum base, turning all the way round
Alu · expansion ready

ASAT pro Alu for Mercedes

$1,299See what's in the box
  • Measuring base made from one solid piece of aluminum, laser marked
  • Measuring points machined into the base, more resistant to wear
  • Bead blasted and clear anodized
  • Rugged, made for years of daily workshop use
  • Protective TPU bumper included, gold or silver
  • Bright 3.5" screen, 1200 nits
  • Built-in LED flashlight
  • Suspension, driveshaft and level measuring
  • 12-month warranty
Ready for what's nextA built-in accessory mount and Alu-only features, unlocked by future updates. The standard version can't take them.
What is different between ASAT pro and ASAT pro Alu
What's differentASAT proASAT pro Alu
Measuring baseHigh-strength carbon-fibre-filled composite measuring baseAluminum measuring base, one solid piece, laser marked
Made forRegular workshop useDaily, heavy workshop use for years
Accessory mountNoYes, built in
Future Alu-only featuresNoYes, with free updates
Accuracy, screen, flashlight, softwareSameSame
Price$1,099$1,299
Compared

Dealer accuracy, workshop price

ToolPricePublished accuracyWorks with
ASAT pro$1,099±0.1° or betterAny diagnostic tool (you type the number)
Romess dealer kit≈ $8,200±0.1°Any diagnostic tool
Haweka inclinometer≈ €1,7000.1°Any diagnostic tool
Autel CSC0500-29≈ $625Not publishedNeeds an Autel scanner

Prices and accuracy from each maker's published information, checked October 2026.

More than suspension

One tool, more jobs

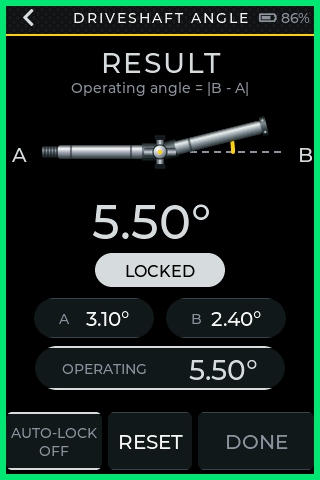

Driveshaft angle result screen, 5.5 degrees operating angle

Driveshaft angle

Measure plane A and plane B, and get the operating angle.

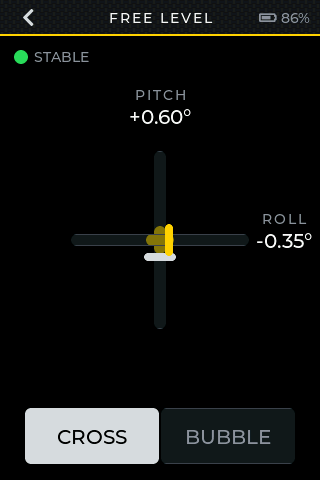

Free level bubble screen

Free level

A two-axis digital level for any surface.

Coming soon

Something new is on the way, for ASAT pro Alu only.

Specifications

The numbers

Accuracy
±0.1° or better within ±10°, each unit checked
Axes
2 (pitch and roll)
Sensor
Industrial-grade 2-axis inclinometer
Base
4 fixed points, 36.9 × 60.0 mm apart
Screen
3.5" IPS, 320 × 480, 1200 nits, bonded glass
Flashlight
2 white LEDs, own button
Battery
Li-ion 1000 mAh, IEC 62133-2 and UN38.3 tested
Run time
About 4.5 h at normal brightness est.
Charging
USB-C, about 2.5 h est.
Size
74 × 108 × 27 mm with bumper
Calibration
Calibrated by us, certificate included
Calibration service
Optional paid service: send it to us yearly, or whenever you need, for recalibration and a new certificate
Warranty
12 months
FAQ

Questions

Which cars does it work on?

Mercedes-Benz and Mercedes-Maybach with AIRMATIC, ABC, MAGIC BODY CONTROL or E-ACTIVE BODY CONTROL where the calibration asks for an angle: S-Class (W220, W221, W222, W223, incl. Maybach), S-Class Coupé and Cabriolet (C217, A217), CL (C215, C216), E-Class (W211, S211, W212, S212, W213, S213 All-Terrain, W214), E-Class Coupé and Cabriolet (C238, A238), CLS (C219, C218, X218 Shooting Brake, C257), C-Class (W205, W206), GL / GLS (X164, X166, X167, incl. Maybach), GLE / ML (W164, W166, V167), GLE Coupé (C292, C167), GLC and GLC Coupé (X253, C253, X254), R-Class (W251), SL (R230, R231, R232), Mercedes-AMG GT 4-Door Coupé (X290), EQS and EQE (V297, V295, X296 SUV, X294 SUV), G-Class (2025 on, incl. G 580) and CLA (2025 on).

It may also work on newer models or models not listed here. Contact us for more information.

Does it work with my scanner?

Yes. ASAT pro is a standalone instrument: you read the number and type it into any diagnostic tool.

Is it calibrated? Does it come with a certificate?

Yes. We calibrate and check every unit ourselves on our reference equipment before it ships. Each tool comes with its own calibration certificate in the box.

How do I keep it accurate?

Do a free field zero any time, in your own workshop, in about a minute. You place the tool on a flat, stable surface such as thick glass, take a reading, turn it around and take a second one. The tool works out its zero by itself. A yearly calibration is not required.

Do you offer a calibration service?

Yes, as an optional paid service. Send the tool back to us yearly, after a hard drop, or whenever you need a fresh certificate, for example for a quality audit. We recalibrate it on the same equipment we use in production and return it with a new calibration certificate. Contact us to arrange it.

Where do you ship?

Worldwide from Israel. Prices are in US dollars. Buyers in Israel see the full price including 18% VAT before they pay. Outside Israel, any import tax or duty is paid by the buyer.

What is the warranty?

If your ASAT stops working because of how we made it, within 12 months of delivery, we fix it or replace it. Drops, other damage and opened tools aren't covered. No forms or fine print: send us a photo or video on WhatsApp and we'll sort it out.
